Glove box in Ahmedabad, Glove box in Baroda And Surat
TECHNICAL SPECIFICATION:
* Material : Chemically resistant material SS 316
* Dimensions:
* Containment chamber : L x W x H each dimension ≥500mm
* Air lock chamber: L x W x H each dimension ≥ 200 mm
* Facility to evacuate Air lock chamber
* Facility to purge gas to allow for creating gas specific work environment
* Hygrometer for relative humidity monitoring will be provided.
* Pressure gauges for monitoring pressure in air lock chamber and containment chamber
* Two glove ports with medium sized chemical resistant gloves
* Require ports within the chamber to allow access to electricaloutlets
* Accesses in side doors to introduce small and large equipment and to allow easy transfer of objects from inside the chamber.
* Internal or external illuminator for lighting
GLOVE BOX
GLOVE BOX
INTRODUCTION For Glove box in Ahmedabad, Glove box in Baroda And Surat

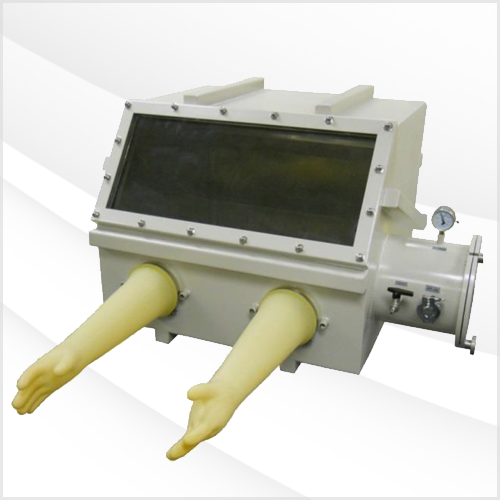

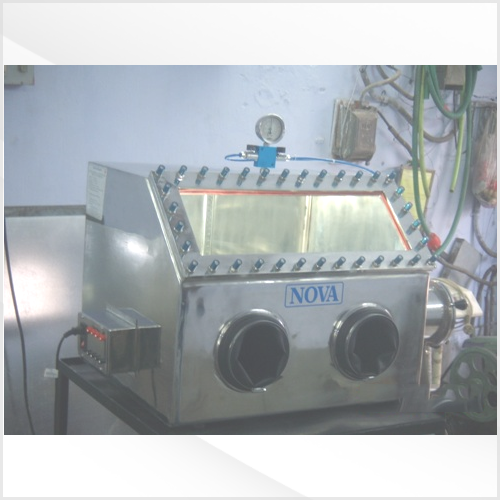

“NOVA” SPECIALLY DESIGNED GLOVE BOX is a sealed container that is designed to allow to manipulate objects where a separate atmosphere is desired. Built into the sides of the glove box are gloves arranged in such a way that the user can place their hands into the gloves and perform tasks inside the box without breaking containment. Part of the box is usually transparent to allow the user to see what is being manipulated. Two types of glove boxes exist; one allows a person to work with hazardous substances, such as radioactive materials or infectious disease agents; the other allows manipulation of substances that must be contained within a very high purity inert atmosphere, such as argon or nitrogen. It is also possible to use a glove box for manipulation of items in a vacuum chamber.Nova Instruments For Glove box in Ahmedabad, Glove box in Baroda, Glove box in Surat.
CONSTRUCTION:
Robust Stainless Steel Construction as per your required size
Toughen glass for observation
Pair of Gloves
Working Tray as per requirement
CFL Illumination
DC Power supply input as per requirement
Air lock chamber of suitable size

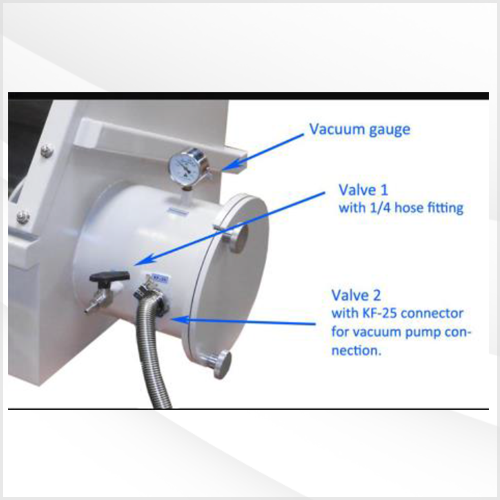

The system connected to Vacuum cum Pressure gauge, Vacuum line with valve, Gas inlet line with valve.
ESSENTIAL ACCESSORIES FOR ABOVE [SUITABLE VACUUM PUMP]
INCUBATORS AS PER CUSTOMER’S SPECIFICATION/DESIGN & SIZE CAN BE MFD.
“NOVA” OIL SEALED ROTARY VACUUM PUMP :
Complete with Motor, Belt, Non return valve, Vacuum gauge with regulator & Moisture trap.
OUR STANDARD SIZE:
22” x 17” x 16” approx. with air lock and vacuum flange etc.
Any Customized size can be made as per requirement.
