FREEZER

[B] FREEZERS HORIZONTAL CAPACITY (Litres) VERTICAL  CAPACITY (Litres)
Quick/Deep Freezer (-) 20 Deg. 170 265 335 425 650 170 265 335 425
Quick/Deep Freezer (-) 35 Deg. 110 170 265 - - 110 170 265 -
Quick/Deep Freezer (-) 80 Deg. - - - - - 95 171 265 -

INTRODUCTION :

The “NOVA” Deep Freezer/Quick Freezer are specifically designed and suitable for Research Laboratories, Biological and Industrial application. The Freezers are high-tech units  incorporating  revolutionary  cooling System giving advantage to the users of rapid pull down of temperature.


APPLICATION:

This Quick Freezers are designed for Quick Freezers and storing of Blood components, Serum, Vaccines, Biological and Medical specimen, Chemical Sample Medicines etc.etc.at low temperature.


SALIENT FEATURES:
  • Model available for –20 Deg. C &  -35 Deg. C.
  • Type : Available Horizontal & Vertical
  • Capacity : Various capacities in Horizontal. & Vertical Model.
  • Stainless Steel Inner chamber.
  • Counter balanced door.
  • Extremely efficient insulation (PUF) to minimize cool loss.
  • High Tech Solid State Digital Indicator cum Controller – Micro Control Based. (Optional)
  • Inner Glass door for Vertical Model only.
  • Power Supply : 230 Volts Single Phase AC.

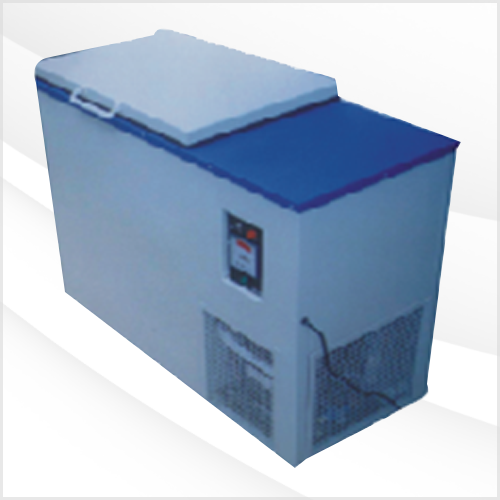

HORIZONTAL MODEL DEEP/QUICK FREEZE
CONSTRUCTION:
Double walled construction. The exterior is  made of  CRC and finished with powder coated/enamel paint. The  inner  chamber is  made of  Stainless Steel 304 quality.

The unit is mounted on castor wheel for easy moveability.

COOLING:
By  hermatically  sealed  and   capillary  control   by Refrigeration which is most economical, trouble free and quiet.

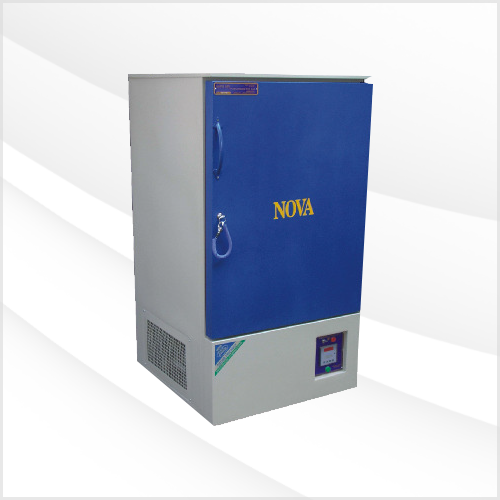

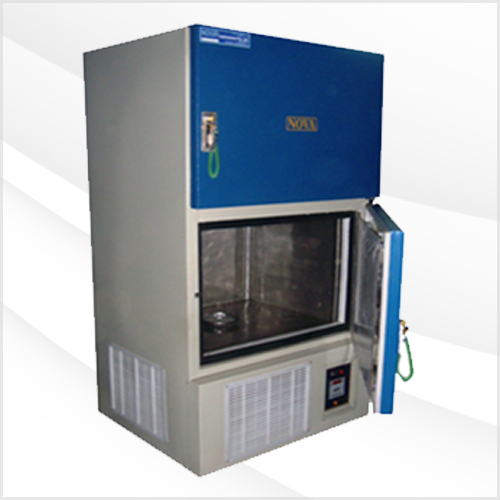

VERTICAL MODEL – SINGLE DOOR VERTICAL MODEL – DOUBLE DOOR

 TEMPERATURE -20 DEG. C.
HORIZONTAL MODEL
 TEMPERATURE -35 DEG. C.
HORIZONTAL MODEL
INNER DIMN.(CMS)
(WxDxH) APPROX.
CAPACITY
LTR APPX.
INNER DIMN.(CMS)
(WxDxH) APPROX.
CAPACITY
LTR APPX.
  60 x 40 x 70 170 ltr
  95 x 40 x 70 265 ltr
  90 x 65 x 58 335 ltr 60 x 41 x 45 110 ltr
110 x 50 x 78 425 ltr 60 x 40 x 70 170 ltr
167 x 50 x 78 650 ltr 95 x 40 x 70 265 ltr

  TEMPERATURE -20 DEG. C.
VERTICAL MODEL
  TEMPERATURE -35 DEG. C.
VERTICAL MODEL
INNER DIMN.(CMS)
(WxDxH) APPROX.
CAPACITY
LTR APPX.
INNER DIMN.(CMS)
(WxDxH) APPROX.
CAPACITY
LTR APPX.
50 x 43 x 80 170 ltr
58 x 50 x 95 265 ltr
65 x 58 x 90 335 ltr 45 x 41 x 60 110 ltr
 65 x 66 x 100 425 lit 50 x 43 x 80 170 ltr
  58 x 50 x 95 265 ltr

NOTE :  (-) 35 DEG.C.IF UNIT IS KEPT IN A.C.ROOM.OTHERWISE (-) 30 DEG. C.
NOTE : (-80) DEG. C.  ULTRA LOW TEMPERATURE ALSO SUPPLIED.

RECOMMANDED ACCESSORIES
  • Deluxe Stabilizer for suitable capacity is strongly recommended.
  • Servo Stabilizer for suitable capacity is strongly recommended.
