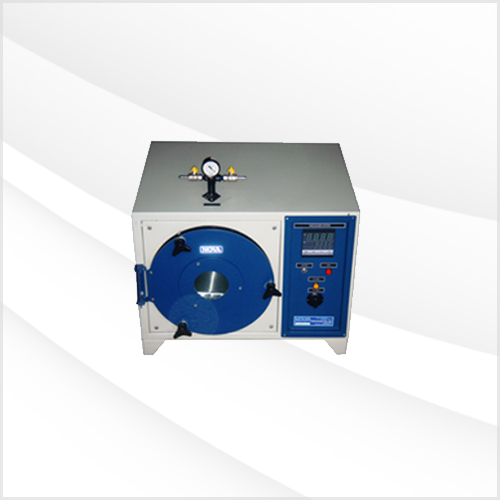

VACUUM OVEN DIGITAL MODEL

[I] VACUUM OVEN
     DIGITAL MODEL
SIZE TEMP. WITH GLASS & WITHOUT GLASS CONTROLS
PID CONTROL PLC CONTROL TOUCH SCREEN LCD DISPLAY & DATALOGGING
25 X 30 cm 110 Deg.c 250 Deg.C
25 X 30 cm 110 Deg.c 250 Deg.C


APPLICATION:
NOVA Vacuum oven finds various application in Chemical Industries, Food  Processing Industries, For  Dehydrating substances under Temperature & Vacuum. It is useful for Electronic   components  testing, Vacuum  impregnations, Laboratories, Educational  Institutions and  for  Research Organizations.

INTRODUCTION:
NOVA  Vacuum  Oven  is specifically designed to  cater  the needs  in   Laboratory, Quality Control, R  &  D, Pharmaceuticals etc.

CONSTRUCTION:
The working  chamber  is  cylindrical  made  out  of thick Stainless Steel. The outer cabinet is made from Mild Steel and elegantly powder coated paint. Glasswool insulation is provided to prevent heat loss. A door gasket is fitted to prevent any leakage. Heat resistant glass window is provided on the door for observation of the sample for the model having max. temp. range up to 110 Deg. C. The Vacuum Oven is fitted with vacuum gauge and needle valve for creating and maintaining the vacuum. The needle valve can be used for the application involving the changing of inert gas or similar application. Vacuum Oven is provided with two perforated Stainless Steel tray.

COMPLETE  WITH FOLLOWING ACCESSORIES:
  • Sturdy Construction.
  • Table top model.
  • Fast vacuum
  • 3 Heat control switch.
  • Top control panel.
  • Built-in Vacuum gauge & Needle valve.
  • L-shape thermometer provided on tray.
VACUUM OVEN
HEATING:
2 Nos. of specially designed heaters are uniformly spread and clamped on the out side of the inner Stainless Steel chamber. They are designed to operate at low heat generation to give long life.
TEMPERATURE CONTROL : Thermostatic or Digital Micro-Control Based.
CONTROL PANEL : Consisting of
  • Mains Switch
  • Mains Indicator
  • 3 Heat Control Rotary switch.
  • Thermostat or Digital Micro Control Based Temperature Indicator cum Controller.
  • Vacuum Gauge.
  • Needle Valve.
  • “L” Shape thermometer is provided and fixed on one of the tray.
SPECIFICATIONS:
TEMPERATURE RANGE

5 Deg. C above ambient to 110 Deg. C with glass window OR 5 Deg. C above ambient to 200/250 Deg. C without glass window.

HEAT CONTROL

By 3 heat control Rotary switch for low/medium & high temp.

TEMPERATURE ACCURACY +/-3% FSD
MAX. VACUUM 700mm of mercury.
NO. OF SHELVES Two
HEATER RATIN 500/750/1000 Watts.
FINISH Powder coated.
MAINS 230V 50Hz 1 Phase.

N. B. :-
  1. Digital Models, the exact temperature can be read on Thermometer as the chamber is under vacuum.
  1. WITHOUT VACUUM PUMP (PROVIDED OPTIONALLY)
AVAILABLE IN FOLLOWING SIZES & CONTROLS :-

S I Z E

TEMPERATURE CONTROL BY

25cm x 30cm

DIGITAL MICRO-CONTROL BASED

DIGITAL PID CONTROL BASED

25cm x 50cm

DIGITAL MICRO-CONTROL BASED

DIGITAL PID CONTROL BASED

OVENS AS PER CUSTOMER’S SPECIFICATION/DESIGN & SIZE CAN BE MANUFACTURED.
