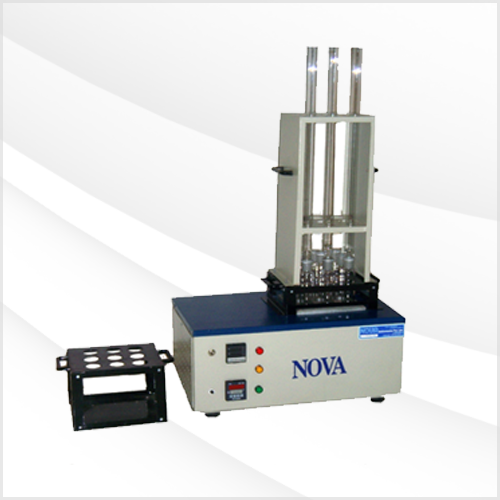

C.O.D DIGESTOR PID CONTROL

C.O.D.DIGESTOR DRY BATH/HEATING BLOCK

INTRODUCTION :
“NOVA” C.O.D.DIGESTOR/DRY BATH/HEATING BLOCK is fully Automatic Instruments suitable for all the laboratories having following Salient features.

APPLICATION :
  • R & D.
  • Quality Control.
  • Biomedical.
  • Industrial Research.
  • Dyes & Chemicals.
  • Pollution Testing etc.etc.
C.O.D DIGESTOR PID CONTROL
SPECIAL SALIENT FEATURES:
#  Fully Automatic.
#  Microprocessor Based Digital Auto Tune PID Control.
#  Temperature Range : 5 Deg. C above ambient to 100/200/300 Deg. C.
(Different Range & Model Available)
#  Resolution               : 0.1 Deg. C.
#  Control Accuracy     : +/- 0.5 Deg. C or better.
#  Fast Sensing Pt-100 type sensor.
#  Digital Timer up to 999 Minutes built-in.
#  Heavily insulated.
#  Powder coated outer chamber.
# Alluminium Block of suitable size to accommodate.

CONSTRUCTION:
NOVA C.O.D.DIGESTOR is modern in design and rigid in construction. Outer chamber is made of CRC Sheet duly powder coated. The block is made from Alluminium duly machined and having various provision to keep required samples as per requirements.

The Block is fitted with specially designed housing to enable the user to replace the block easily as per their requirements.

The heating system is indirect to provide uniform heating to the Alluminium block.

The sensor is fitted in such a position to offer fast & accurate temperature sensing and control.

Digital PID Controller and Digital Timer offers easy and efficient setting and control of required temperature and time.


CONTROL PENAL:
The Control Penal is provided on side of the C.O.D. Apparatus consisting of the following.
  • Mains Switch.
  • Mains Indicator.
  • Digital PID Controller – Microprocessor Based.
  • Heater ON/OFF Indicator.
  • Digital Timer.
  • Digital Timer Reset push button.
  • Digital Timer ON/OFF Indicator.

AVAILABLE CAPACITY :
[A] 12 Nos. of 32mm dia test tubes for C.O.D. Digestor.
[B]   9 Nos. 50ml. Samples for C.O.D. Digestor.
[C]   9 Nos.100ml. Samples for C.O.D. Digestor.
[D] 12 Nos. of 100ml. Samples for C.O.D. Digestor.
[E] As per specific application.

OTHER SIZES & CAPACITY C.O.D.DIGESTOR WILL BE SUPPLIED AS PER REQUIREMENTS.
