Product >>Bio Technology Instruments >> Virtical Autoclave

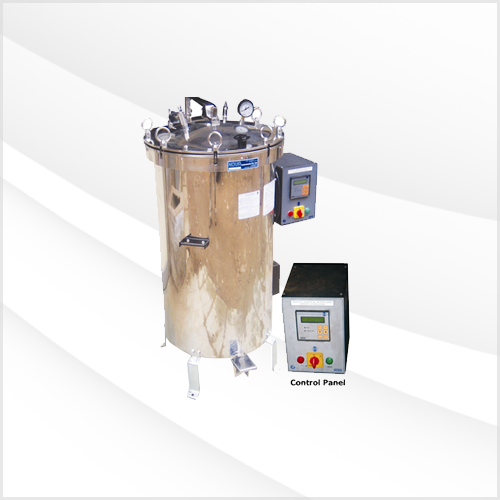

VIRTICAL AUTOCLAVE

AUTOCLAVE STEAM STERILIZER VERTICAL (DOUBLE WALLED)

APPLICATION :

“NOVA” VERTICAL AUTOCLAVE is an asset to Hospitals, Pharmaceutical, Biotechnology, Tissue culture, Bio-Fertilizer Laboratories and Research Institutes, Micro-biology lab., Quality Control & Research Labs with modest sterilizing needs, where contaminated objects require sterilization. We represent most innovative and advanced technologies in our products supported by our most efficient customer support network.

VIRTICAL AUTOCLAVE
TECHNICAL SPECIFICATION:

* Double wall design has single chamber for steam and water.
* Working chamber made of stainless steel LM 304 grade.
* Outer cover made of stainless steel.
* Lid, flange & bottom sheet also made of stainless steel.
All joints argon welded.
* Joint less silicon gasket, heavy duty industrial flange heater.
* Pressure range : 15 to 22 PSI, factory set at 15 PSI.
* Temperature Control : Microprocessor Based digital display.
* Temperature Sensor  : Pt-100.
* Temperature Range   : 121 Deg. C to 125 Deg. C.
* Temperature Resolution : 0.1 Deg. C.
* Temp. Accuracy +/- 0.5 Deg. C
* Lid fitting pressure gauge 0-30 PSI, safety spring loaded pressure
valve, steam release valve.
* Hydraulically tested.
* Foot lifting arrangement included for size 18” x 24” & 22” x 30”.
* Electrical : 230 V/15 A/50 Hz.

STANDARD MODEL:

Temperature automatically maintained by Digital controller, which controls/pressure and temperature with temperature indication, factory set at 121 Deg. C (15 PSI), along with built-in Digital timer adjustable for maintaining sterilization cycle time with auto cut-off. COMPLETE WITH BASKET MADE OFTHICK S.S.WIREMESH RODS.

SIZE OF WORKING CHAMBER
[DIA x HEIGHT]
CAPACITY (LITRES) RATING
[KW]
12” x 20” 30cm x 50cm 35 2.0
14” x 22” 35cm x 55cm 52 3.0
18” x 24” 45cm x 60cm 95 4.0
18” x 30” 45cm x 75cm 125 4.0
22” x 30” 55cm x 75cm 175 6.0
