Product >> Incubator >> Digital Incubator Tripple Walled PID Control

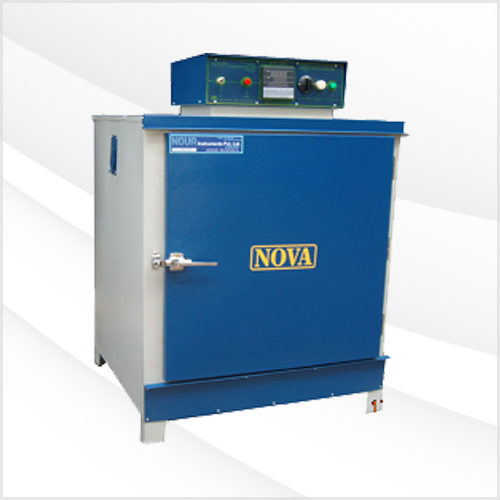

DIGITAL INCUBATOR TRIPPLE WALLED PID CONTROL

        DIGITAL PRECISION TRIPPLED WALLED BACTERIOLOGICAL INCUBATOR – TRIPPLE WALLED MICROPROCESSOR BASED PID CONTROL MODEL

INTRODUCTION :
in Laboratory, Chemicals, Quality  Control, R & D, Agriculture, Pathology, Microbiology, Chemistry, Analytical & Bacteriological Test etc.

SALIENT FEATURES:
  • Uniform heating.
  • Sturdy construction.
  • Air ventilation.
    (Conventional or forced air circulation – Optional)
  • Digital Temp. Indication Control –PID Microprocessor
  • Highly sensitive Temperature sensor (Pt-100 type)
  • Inner full Glass door with Alluminium channel.
  • Two Digital Indicating Windows. For Process Temperature
    (PV) and Set Temperature (SV).
  • Timer (Optional)
TRIPPLE WALLED MICROPROCESSOR BASED PID CONTROL MODEL
APPLICATION:
  • Quality Control & R & D.
  • Medical.
  • Industrial Research.
  • Cultivation of Bacteria.
  • Pathological Test.
  • Biological Test.
  • Hospitals.
  • Moisture evaporation.
  • Plant Testing in Agriculture
  • At required temperature within specific range.

CONSTRUCTION:

Modern in design & rigid in construction. Tripple walled body. Inner chamber made of Stainless Steel and outer body made of Mild Steel duly powder coated paint. 75mm thick glass-wool  insulation  is  provided  between  the  two chambers.  Door is fitted with electroplated hinges with spring and roller bolt locking or Magnetic latch. Complete with GLASS DOOR.


INCUBATORS  AS PER CUSTOMER’S SPECIFICATION/DESIGN & SIZE CAN BE MFD.

HEATING ELEMENTS :

PLACED ON BACK SIDE OF INCUBATOR, DIRECTLY UNDER FORCED AIR CIRCULATION BLOWER FOR UNIFORM TRANSFER OF HEAT.


TECHNICAL SPECIFICTION :

  • Double walled construction with inner chamber made of highly polished stainless steel & Outer chamber made of MILD STEEL/GI DULY POWDER COATED.
  • The gap (65 mm) between the walls is filled with special grade insulation material for proper insulation and to avoid heat losses.
  • Inner chamber fabricated with adjusting shelves to convenient height.
  • Supplied with three removable shelves made of S.S. Sheet.
  • Fitted with air circulating fan.
  • With two doors. The outer door is insulated and is fitted with heavy hinges. Inner door is made of glass panel mounted in a Aluminum frame to facilitate inspection of samples, without disturbing the chamber temperature.
  • Heating elements made of high grade imported in chrome wire will be insulated inside the porcelain beads and placed on Back Side for uniform temperature all over the space.
  • Temperature is controlled by digital display temperature controller-cum-indicator from 5°C above ambient to 60°C±0.5°C.
  • Set “Over temperature” safety and alarm: provided with set over temperature safety up to 10°C (adjustable) and audio alarm feature will be incorporate in the temperature controller.
  • Air ventilators port are provided on sides for ventilate fumes and to assist convection process.
  • Control panel : The equipment will be provided with a panel having a temperature control key pad, On/Off switch and indicating light.
  • Supplied with cord and plug. Suitable to operate on 220 V single phase, 50 Hz, AC supply.

SIZE OF INNER CHAMBER : 600 x 600 x 600 mm (W x H x D)


OTHER SPECIFICATIONS:

Back side heaters, Back mounted motorized blower Forced Air Circulation. Most useful for precision temperature control for Agricultural, plant pathology, Microbiology, Chemistry, R & D work, Electronic/PCB mfg. Max. Temperature 5 Deg. C above ambient to 60 Deg. C.  Resolution : 0.1 Deg. C & Accuracy : +/- 0.5 Deg. C. Complete  with  glass  door. Inner both chamber made of STAINLESS STEEL & outer chamber made of MILD STEEL DULY POWDER COATED PAINT.


DIGITAL CONTROLLER PROVIDED WITH CALIBRATION CERTIFICATE TRACEABLE TO NATIONAL STANDARD
OTHER SPECIAL APPLICATION INSTRUMENTS AVAILABLE
  • PRECISION PROG. TRIPPLE WALLED INCUBATOR OF VARIOUS CAPACITY & SIZE.
