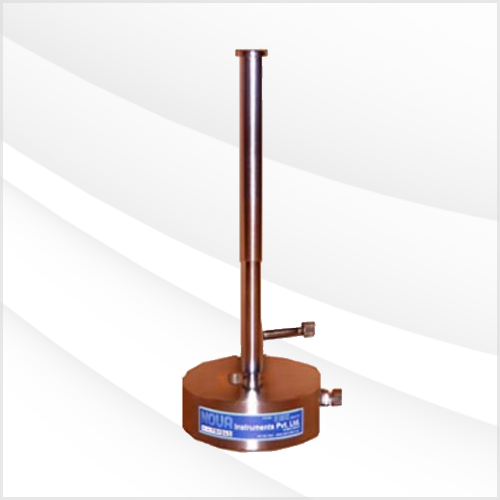

SMALL BALL IMPACT TESTER

SMALL BALL IMPACT TESTER [AS PER IS 2046 : 1995]

INTRODUCTION :
“NOVA” MAKE SMALL BALL IMPACT TESTER For Decorative Lamination Sheet (As PerIS 2046:1995) is specifically designed for Laboratory Testing of Decorative Lamination Sheet.

Decorative Lamination sheet are normally used for hous e hold and office furnitur e, electronic panels etc. should pusses sufficient strength so that, it should not crake under th e effect of impact which they may encounter in every day use.

The ability of Decorative lamination sheets to withstand such impacts may be determine by 2 method.
(A) SMALL DIAMETER BALL IMPACT METHOD.
(B) LARGER DIAMETER BALL IMPACT METHOD.

In the Small Diameter Ball Impact Method, the sheet under test is bonded to a 18 to 20mm thick sheet of particle board and placed over a rigid metallic platform and impact gun consisting of the indenting ball and a compress spring is placed in a circular suppo rting frame place over th e test sheet and the ball made to strike it by releasing the spring. The effect of such impacts is evaluated visually to ascertain the impact resistant of th e sheet under test.

“NOVA” Small Diameter Ball Impact Testerfor decorative lami nation sheet consist of two part .

(A) A circular supporting plate for holding the impact hammer perpendicular to the surface of the sheet made of Mild Steel and a hole in centre to hold impact gun viewing windows & 3 legs for placing it on surface of the sheet under test.
(B) An Impact gun to strike the ball against the surface of the sheets with a none force.

OPTIONAL :
Support platform made of Mild Steel of size 300 x 300 x 50mm arranged by users or can besupply at an extra cost.
The Impact gun is made of metal tube and has a ba ll indenter of 5mm diameter. The indenter can be pulled back again compression spri ng with the help of a spring / holding device and it will be held in pulled state by a catch cum release lever arrangement.

A release lever is provided to release the ball to en able it to strike on the sheet under Test. The impact force can be set by pre compressing the spring and its value his mark on the barrel of the metal tube.

TECHNICAL DATA:
Diameter of Impacting Ball 5mm
Impac Force Adjustable between 0 to 90 N

RELATED STANDARD : IS 2046:1995

DECORATIVE THERMOSETTING SYNTHETIC RESIN BONDED LAMINATED SHEETS SPECIFICATION
(Second Revision) ANNEX H
SMALL BALL IMPACT TESTER
