Product >>Seed Testing Instrument >> Seed Germinator Dual


SEED GRAMINATOR DUAL

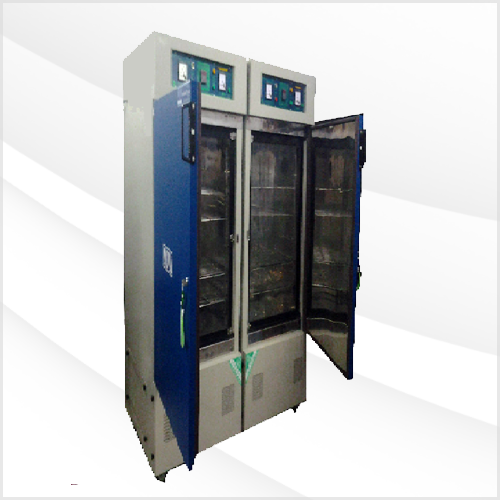

SEED GERMINATOR [DUAL CHAMBER]

INTRODUCTION:
Nova  Seed  Germinator  Dual   chamber  is specifically design to cater the needs for Lab. R & D,   Seed Testing Laboratories, Seed Certification Agencies,  Agricultural  application, Quality Control,& Environmental testing etc.

TECHNICAL SPECIFICATION :
  • Inner chamber made of Stainless Steel.
  • Outer chamber made of CRC sheet & elegantly two color painted.
Humidity generation through  boiler  made of  Stainless duly insulated and having safety for auto float and solid state electronic level control.
Dry & Wet temp. individual and control by Micro control based Digital Temp. Indicator cum Controller. Digital Temp. Indicator cum controller show process value and set value indication fully automatic.
- Resolution : 0.1 Deg. C.
- Full four digit display windows.
- Humidity : Set & Desire by depression chart provided with the unit.
- Solid state electronic circuit.
- Inner glass door with aluminum frame.
- Resolution : 0.1 Deg. C.
- Full four digit display windows.
- Humidity : Set & Desire by depression chart provided with the unit.
- Solid state electronic circuit.
- Inner glass door with aluminum frame.
- Highly insulated.
- Auto selection for heating or cooling system.
- Highly efficient cooling system.
- Castor wheel for easy move ability.
- A meter & Voltmeter will be provided on the control panel.
- Operation              :  230 V single phase 50 Hz
- Temp. Range         :  10 to 40 Deg.C /10 Deg.C to 60 Deg.C
- Accuracy               :  +/- 1%
- Humidity Range      :  35 to 95% RH (Controllable)
- Humidity Accuracy  :  +/- 3%
Control digital fully automatic.
The instrument controllers and sensors will be provided with Test & Calibration certificate with tractability to National/International Standard to meet IS/ISO-9000 Standard.

Both the chamber will be fitted together as well as   can be separate as individual unit.
Trays   :  Made of Stainless Steel 304 0.71mm (22 SWG)
SEED GERMINATOR [DUAL CHAMBER]

AVAILABLE MODELS:
CAPACITY (Cuft) INNER DIMN. IN CMS (H x W x D) TEMP. RANGE
ACCU.+/-1 DEG.C
HUMIDITY RANGE ACCU.+/-3% RH CHAMBER
6 Cuft 70 x 50 x 50 10 to 60 Deg. C. 90
to
95%
RH
Single
8 Cuft 80 x 55 x 50 10 to 60 Deg. C. Single
10 Cuft 90 x 55 x 55 10 to 60 Deg. C. Single
12 Cuft 90 x 65 x 58 10 to 60 Deg. C. Single
16 Cuft 90 x 70 x 70 10 to 60 Deg. C. Single

OPTIONAL ACCESSORIES:
Suitable Servo Controlled Voltage  Stabilizer. Complete with High/low cut-off, Analogue Voltmeter RF filter, Spike Protector, MCB Built-in.

SPECIAL NOTE:
THE INSTRUMENT TEMPERATURE CONTROLLERS AND SENSORS WILL BE PROVIDED WITH TEST & CALIBRATION CERTIFICATE WITH TRACEABILITY TO NATIONAL STANDARD FOR ISO-9000/IS REQUIREMENTS THROUGH OUR ASSOCIATE M/S.NOVA CALIBRATION CENTRE.
