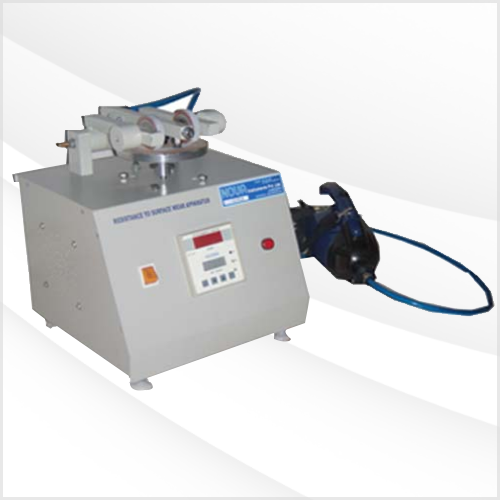

RESISTANCE TO SURFACE WEAR APPARATUS

RESISTANCE TO SURFACE WEAR APPARATUS[ABRASION TESTER] FOR DECORATIVE LAMINATION SHEET[AS PER IS 2046 : 1995]

INTRODUCTION :
“NOVA” MAKE RESISTANCE TO SURFACE WEAR APPARATUS (ABRASION TESTER) ForDecorative Lamination Sheet (As Per IS 2046:1995) is specifically designed for Laboratory Testing of Decorative Lamination Sheet.

The decorative surface of the sheet shall be sufficiently resistant to ab rasion to protect its base layer from exposing in normal use. This ability to resist abrasion is determine by holding a circular test specimen taken from sheet & keeping over a horizontal platform & rubbing it with abrasive paper mounted over to cylindrical rubber disc. The test specimen is rotated at a fix speed of 60 +/- 2 RPM and the rubber disc rotates alongwith th e platform due to fraction be tween them and test specimen.

This causes the surface of the test specimen to abrade. The numbers of rotation required to bring about a defined degree of change in colors or wearing of the top layer gives a measure of abrasion resistant to the sheet under test.

CONSTRUCTION:
“NOVA” MAKE RESISTANCE TO SURFACE WEAR APPARATUS (ABRASION TESTER) For Decorative Lamination Shee t (As per IS 2046:1995) consists of a horizontal platform which rotates at a fix speed by synchro-set motor. Two Nos. cylindrical rubber cover wheels having width of 12.7mm & 50mm dia disposed symmetrically about the axis of th e platform & located at 20mm in front of its centre with a loading arrangement to press the rubber disc against the surface of th e specimen sheets under a specified load of 5.4 +/- 0.2 N on each. A programmable pre-set Digital counter with total revolution indication is provided to record the numbers of revolu tion of the platform and to step the motor after pre set program of revolution.
10 Pairs of abrasive sheets of 12.7mm width & 160mm L made of aluminum oxide paper of either 180 or 220 grit with double side tape fixed at the back to stick them on rubber wheels are provided.

A vacuum suction system is provided to remove the abraded dust from the surface of the test specimens.

The equipment is finished in POWDER COATED PAINT.

The system is also provided with side arm resting device.
TECHNICAL DATA :
Platform Diamete 140mm
Platform Rotation Speed 60 + 2 RPM
Dimension of Rubber Disc 50mm dia x 12.7mm width
Hardness of Rubber Disc 50 to 55 IRHD (Shore-A)
Distance between Face of Disc 50 to 55mm
Load of Rubber Dis 5.4 + 0.2 N (550 + 20gm)
Suction by Vacuum 1.5 to 1.6 kPa min
Suction Nozzle Distanc 77mm

OTHER FEATURES:
Rotation By Digital Programmable Counter.
Total Rotation Counting On Digital Display.
Vacuum pump Compact Vacuum pump with vacuum system.

OPTIONAL:
Calibration plate for Abrasive Strip made of Rolled Zinc sheet use for checking of cutting powder should be arranged by customer or will be supplied at an extra cost.

RELATED STANDARD: IS 2046:1995

DECORATIVE THERMOSETTING SYNTHETIC RESIN BONDED LAMINATED SHEETS SPECIFICATION
(Second Revision) ANNEX C
RESISTANCE TO SURFACE WEAR APPARATUS
