Product >>Shaker >> Orbital Shaking Incubator

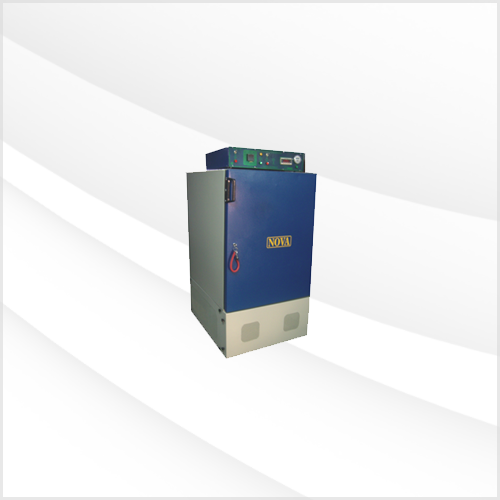

ORBITAL SHAKING INCUBATOR

ORBITAL SHAKING INCUBATOR/ENVIRONMENTAL SHAKERMICROPROCESSOR BASED PID CONTROL BASED [BRUSHLESS INDUCTION MOTOR]

INTRODUCTION :
“NOVA” MICROPROCESSOR BASED PID CONTROL BASED ORBITAL  SHAKING  INCUBATOR is specifically designed to cater the  needs of Incubation  and routine  determination  of  Biological  Oxygen  Demand  on Water  and   Sewage,  Biotechnology,   Tissue   Culture, Cultivation of Bacteria, Storage of Dairy Product, Shell Life Test,  Medical  Application,  Microbiology,  Virology,  R & D, Pharmaceuticals, Bacteriological, Pathological & Q.C. Work.

SALIENT FEATURES (OF SHAKER):
  • Efficient Shaking.
  • Compact counter balance drive mechanism.
  • Working on eccentric.
  • Eliminating spring system.
  • Smooth & Perfect throw.
  • Highly efficient Brushless Induction Drive Motor.
  • Electronic AC frequency Drive for smooth RPM Control.
  • Smooth & Jerkless shaking.
  • Electronic Digital RPM Indicator & Speed Controller
  • Castor wheel for easy moveability.
  • Variable speed from 50 to 250 RPM.
  •    Operatable  50 to 220/250 RPM Max.
  • Interchangeable trays for various size (Optional).
  • Chamber illumination (Optional).


SALIENT FEATURES (OF INCUBATOR) :
  • Sturdy Construction.
  • Easy move ability.
  • Digital Display & Control (Microprocessor PID Control).
  • Fully Automatic Control System.
  • Stainless Steel Inner chamber.
  • Full view Inner Glass Door.
  • Force Air Circulation for uniform temperature.
  • Slow Temperature Rise Heaters for long life.

APPLICATION:

“NOVA” Microprocessor PID Control Based Orbital Shaking Incubator are available in various size, capacity and inner chamber material for various application and uses in Biology, Virology, Biotechnology, Tissue Culture, Oceanography, Water Pollution, Medical, Microbiology, Sewage, R & D, Agriculture, Dairy Product, Food Research Lab, Bacteriological, Pathological & Quality Control Work and other application include cultivation of Bacteria, Shell Life Test, Cultivation of insect varieties for Genetic Studies, Preservation of vaccine and other test demanding constant and uniform temperature below and above ambient with or without shaking.


CONSTRUCTION:

Double walled construction, exterior of Mild Steel finished in powder coating paint. Interior made of STAINLESS STEEL. Glass wool insulation will be provided between the chambers to minimize heat/cool loss. Full glass door will be provided. The door will be of double walled provided with magnetic gasket, lock and handle. Removable tray of suitable tray capacity is provided. Forced air circulation is provided for uniform temperature. Brushless Induction Motor driven shaking system alongwith Electronic AC frequency drive and Digital RPM Meter for shaking. The entire unit rest on castor wheels for easy move ability.


HEATING & COOLING:

Heating by long lasting air/strip heaters provides heating above ambient temperature with Electronic PID Control and display system. Hermatically sealed compressor/condensing unit coupled with evaporation coil and fan cooled condenser provide cooling below ambient temperature.


CONTROL SYSTEM:
All the controls are provided on the front top side of the unit for easy assessment, operation and maintenance.

PANEL:

The control panel system is consisting of Mains Switch, Mains Indicator, Digital Microprocessor Based PID Controller, Heating ON Indicator, Cooling ON Indicator, Shaker ON/OFF Toggle Switch, Shaker ON Indicator, Digital RPM Indicator cum Controller etc.


TECHNICAL SPECIFICATION:

Shaking Motion       Orbital
Shaking Amplitude  20- 25mm
Shaking Frequency Minimum 0-250rpm
Temperature Range 5°C to 60°C
Temperature Accuracy ±0.5°C
MOC Outer Powder coated CRC steel sheet
MOC Inner Chamber & trays made of Stainless Steel
Insulation High density PUF insulation for tighter temperature controls
Display LED display with Set Value or Process Value
Drive Permanent Magnet DC Drive for continuous operations
Shaking Control Stepless Continuously Variable Speed Control System
Shaking Tray Size Minimum 450mm x 450mm
Inner Chamber Size 550mm X 550mm
RPM Display Digital : Flask of variable capacity
Power Supply 200-230V AC, 50/60Hz

OTHER SPECIFICATION

Sensor Pt-100 type.
RPM 50 to 200/250 RPM Continuously variable & settable

- Continuous operatable – Range 50 to 220/250 RPM Max.

RPM Setting DIGITAL.
RPM Indicator DIGITAL.
Shaking By BRUSHLESS INDUCTION MOTOR with AC Frequency Drive system incorporated with Mechanical set consisting of eccentric, Bearing housing, Counter Balance Fly wheel.
Trays Suitable to rest on shaking device capable to take suitable load.

SHAKER WILL BE PROVIDED WITH SET OF ANTI VIBRATION PAD.
FLASK CAPACITY/SIZE
16 FLASK OF 250ml. 16 FLASK OF 500ml.
     √   25 FLASK OF 250ml. 25 FLASK OF 500ml.
36 FLASK OF 250ml. 36 FLASK OF 500ml.
N. B. :- TRAY OF COMBINATION OF DIFFERENT FLASK CAPACIT WITHIN THE SIZE/CAPACITY CAN BE PROVIDED AS PER THE REQUIREMENT

OPTIONAL ACCESSORIES:
  • Suitable Voltage Stabilizer (Optional)
  • Illumination with Timer (Optional).
