FURNACE - LABORATORY TUBLAR FURNACE

   LABORATORY TUBULAR FURNACE [CERAMIC TYPE]

SALIENT FEATURES:
  • Portable & Light Weight.
  • Cerwool Insulation.
  • Sensitive temperature sensor.
  • Bright LED Display.
  • Kanthal A-1 heating coil.
  • Easy operation and maintenance.
  • Front bottom control panel.
  • Powder coated paint.
  • Fast temperature attainment.
  • Power saving low wattage heaters.

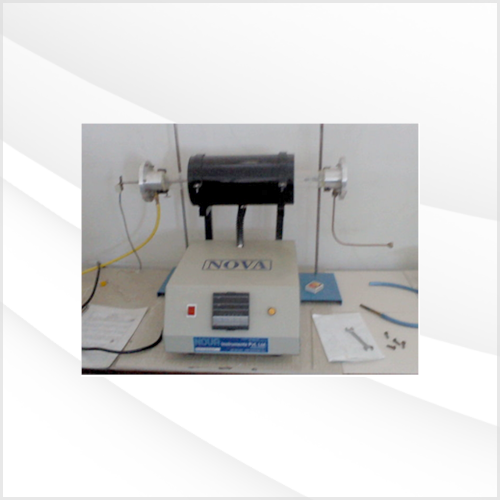

 LABORATORY TUBULAR FURNACE

APPLICATION:
  • Laboratory.
  • R & D.
  • Analytical.
  • Process.
  • Annealing.
  • Chemical.
  • Metallurgical.
  • Calibration
  • And Other Research application.

CONSTRUCTION:

“NOVA” Laboratory Tubular Furnace is having double chamber construction. Inner chamber is a high Alumina Ceramic tube and outer Mild Steel. Both the end of the furnace is covered by synthania machine sheets.

Cerwool insulation is provided to minimize heat loss. Specially designed heater coil surrounded on outer side of ceramic tube. The Tubular Furnace will generate and transfer the heat very fast with minimum heat loss and thus maximum temperature of 850/900 Deg. C can be achieved within less than an hour. Thus the system is power consumption saver.


CONTROL PANEL :
The control panel consisting of….
  • Mains Switch.
  • Mains Indicator.
  • Digital Control System.
  • Heater ON/OFF Indication.

TECHNICAL SPECIFICATION:

TEMPERATURE RANGE Ambient to 850/900 Deg. C.
TEMPERATURE DISPLAY 4 Digit LED.
TEMPERATURE CONTROL Various type of Digital Controllers. Please refer the block “CONTROL SYSTEM” below.
CONTROL ACCURACY +/-2% or better depend on types of Control Systems.
SENSOR Cr/Al (K) Type.
POWER SUPPLY 230 Volts Single Phase AC.

AVAILABLE IN FOLLOWING SIZES & CONTROL SYSTEMS :


S I Z E S

CONTROL SYSTEM BY….

ID MM OD MM LENGTH OF FURNACE MICRO-CONTROL MODEL PID CONTROL MODEL PROG. CONTROL MODEL
55/60 140 300mm Accu.+/-3%FSD Accu.+/-1.5%
FSD or better
Accu.+/-1.5% FSD or better
38 to 40 100-120 300mm +/-1 Deg. C

NOTE :-

Tubular Furnace as per Customers Specification, Design/Application, Temperature Range and Size can be Manufacturing.
