HEATING BLOCK

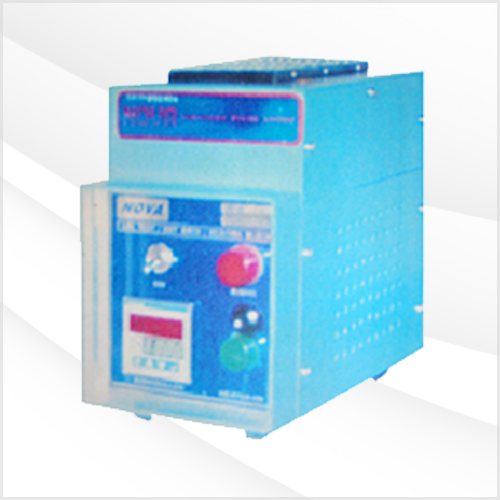

DIGITAL DRY BLOCK INCUBATOR/LAL TEST / DRY BATH/HEATING BLOCK

INTRODUCTION :
“NOVA” DRY BLOCK INCUBATOR/LAL TEST/DRY BATH/HEATING BLOCK is fully automatic Instrument suitable for various Pharmaceutical & R & D Laboratories.

SALIENT FEATURES:
  • Automatic
  • Microprocessor Based Digital Auto tune PID Control
  • Temperature Range : 5 Deg. C above ambient to 37 Deg. C/50 Deg. C for Standard Model.
  • Model for 90 Deg. C & 110 Deg. C available Optionally.
  • Temperature Resolution : 0.1 Deg. C.
  • Temperature Control Accuracy : +/- 0.2 Deg. C or better.
  • Sensor : Pt-100 type.
  • Acrylic door with lock & key to prevent accidental alternation OR disturbance to set Temperature.
  • Unit will be supplied with 3 Alum. Block interchangeable having 15 holes of 10.6mm approx.
  • Total Capacity 45 wells of 10.6mm dia.
  • Other Capacity/Wells available Optionally.
  • Specially designed heater for Uniform temperature heavily insulated with cerwool.
  • Powder coated outer chamber.
DIGITAL DRY BLOCK INCUBATOR/LAL TEST / DRY BATH/HEATING BLOCK

APPLICATION:
  • PHARMACEUTICAL
  • QUALITY CONTROL
  • R & D
  • BIO-MEDICAL
  • DYES & CHEMICAL
  • INDUSTRIAL RESEARCH LABORATORIES

CONTROL PANEL:

Control Panel consisting of…..

  • Mains ON/OFF Switch
  • Mains Indicator
  • Digital PID Controller – Microprocessor Based.

AVAILABLE MODELS:
  • MICRO-CONTROL BASED               OR
  • MICROPROCESSOR BASED PID       OR
  • MICROPROCESSOR BASED PROGRAMMABLE CONTROL

CAPACITY : 45 wells standard. 60, 75, 90 Wells Optionally.

SPECIAL NOTE  :  IQ, OQ, PQ WILL BE PROVIDED ON REQUEST.

ALL THE CONTROLLER ARE PROVIDED WITH TEST & CALIBRATION REPORTS FROM OUR ASSOCIATE M/S.NOVA CALIBRATION CENTRE WITH TRACEABILITY TO NATIONAL STANDARD.
