Product >> Fermentor >> Fermentor Industrial Model

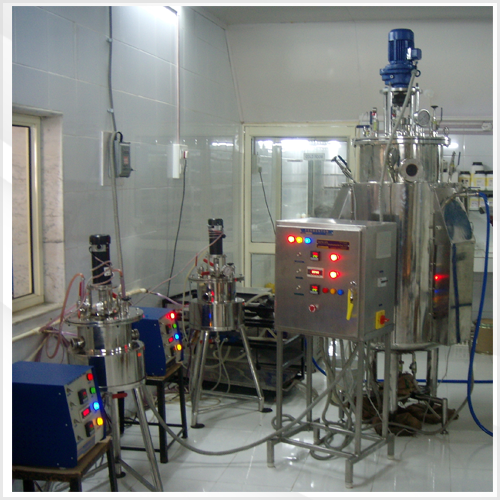

FURMENTOR - INDUSTRIAL MODEL

   GENERAL SPECIFICATION OF FERMENTOR (BIG MODEL)

SALIENT FEATURES:
  • Culture vessel made of S.S. 316. Outer chamber jacket etc made of S. S. 304 of required thickness.
  • In-situ sterilizable either with oil jacket and electrical heated OR by steam from boiler.
  • Head plate made of S. S. 316.
  • Pressure die cast dished.
  • Various provision of ports.
  • Modular and detachable separate control panel.
  • Built-in variable speed stirrer with electronic control.
  • Different type of size of impeller as per customer requirement.
  • Digital Auto-tune PID Temperature control system.
  • Built-in safety feature.
  • Provided with sight glass.
  • ALL DIGITAL CONTROLLERS & PRESSURE GAUGES WILL BE PROVIDED WITH TEST & CALIBRATION CERTIFICATE FROM OUR ASSOCIATE M/S. NOVA CALIBRATION CENTRE HAVING TRACEABLE TO NATIONAL STANDARD.
GENERAL SPECIFICATION OF FERMENTOR (BIG MODEL)

STANDARD SUPPLY WITH THE UNIT:
  • Basic Fermentor unit with 11 ports and stand.
  • Motorized stirring system having variable speed from 30 to 180 RPM settable.
  • Built-in cooling coil for chilled water circulation only provision. Without Chiller & Pump.
  • Pressure gauge.
  • Safety valve.
  • Steam release valve.
  • Air Inlet & outlet with sterilizable 0.2 micron filter.
  • Pt-00 sensor.
  • Spare ports.

CONTROL PANEL:

Consisting of Main Switch, Mains Indicator, Digital PID Controller, Digital RPM Indicator for stirring, MCB, Fuse, Safety provision etc.


CONTROL SYSTEM
PID CONTROL SYSTEM PLC BASED CONTROL SYSTEM
CAPACITY
100 LITRE
200 LITRE
500 LITRE
1000 LITRE

OPTIONAL PARAMETER FOR ALL THE MODELS AT AN EXTRA COST:
  • PH Controller with Digital readout.
  • Anti foam controller with S.S. Probe.
  • Peristaltic/Dozzing pump for acid base & nutrient.
  • D.O. Indicating controller with electrode.

OPTIONAL ACCESSORIES :
  • Chiller for below ambient temperature operation with circulating pump.
  • Air compressor with filter and accessories.
  • Disposable filter – Set (Sterile)
  • Computer control software with PC and Printer for PLC model only.
  • Chiller for below ambient temperature operation with circulating pump.
  • Air compressor with filter and accessories.
  • Disposable filter – Set (Sterile)
  • Computer control software with PC and Printer for PLC model only.
  • BOILER FOR STEAM GENERATION, DIFFERENT MODEL FOR DIFFERENT SIZE FERMENTOR OR REQUIRE STEAM TO BE PROVIDED BY CUSTOMER FROM THEIR BOILER.

NOTE :-
INDUSTRIAL SERIES FERMENTOR CAN BE SUPPLIED AS PER REQUIREMENTS OF OTHER CAPACITY & APPLICATION PARAMETERS.
