Product >>Bio Technology Instruments >> Digital Autoclave

DIGITAL AUTOCLAVE

AUTOCLAVE STEAM STERILIZER VERTICAL (DOUBLE WALLED) FULLY AUTOMATIC GMP MODEL

APPLICATION :

“NOVA” FULLY AUTOMATIC GMP MODEL DIGITAL VERTICAL AUTOCLAVE is an asset to Hospitals, Pharmaceutical, Biotechnology, Tissue culture, Bio-Fertilizer Laboratories and Research Institutes, Micro-biology lab., Quality Control & Research Labs with modest sterilizing needs, where contaminated objects require sterilization. We represent most innovative and advanced technologies in our products supported by our most efficient customer support network. For use in Micro-biology lab., Q. C. & Research Labs. – Pharmaceutical Industries etc.

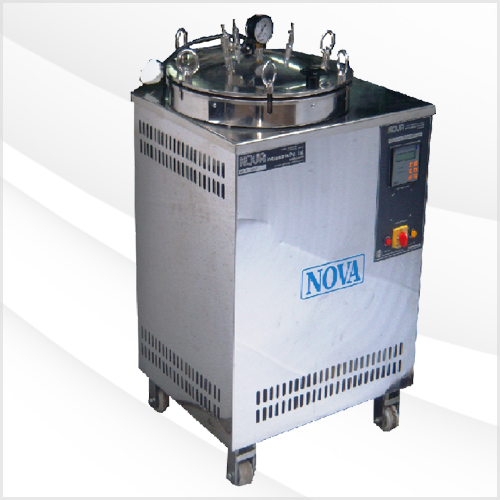

DIGITAL AUTOCLAVE
TECHNICAL SPECIFICATION:
  • Double wall design has single chamber for steam and water.
  • Fully Automatic operation cycle is commenced by press of the START button.
  • Initial air purging cycle at the beginning air is automatically removed from the chamber.
  • Microprocessor based Digital Temperature Indicator Controller Controls Temperature/pressure precisely at set value.
  • Temperature Sensor : Pt-100.
  • In built digital timer – timer can be adjusted as per sterilization load requirements.
  • Automatic steam exhaust at the end of cycle.
  • Low water level heater safeguard.
  • Safety high pressure release valve.
  • Outer cover made of stainless steel 1mm thick.
  • Lid, flange & bottom sheet also made of stainless steel. All joints argon welded.
  • Joint less silicon gasket, heavy duty industrial flange heater.
  • Pressure range : 15 to 22 PSI, factory set at 15 PSI.
  • Temperature Control : Microprocessor Based digital display.
  • Temperature Range   : 121 Deg. C to 125 Deg. C.
  • Temperature Resolution : 0.1 Deg. C. Temperature Accuracy +/- 0.5 Deg. C.
  • Lid fitting pressure gauge 0-30 PSI, safety spring loaded pressure valve, steam release valve.
  • Hydraulically tested at 60 PSI.
  • Foot lifting arrangement included for size 18” x 24” & 22” x 30”. Not required for lower sizes.
  • Electrical : 230 V/15 A/50 Hz.
  • COMPLETE WITH BASKET MADE OF THICK S.S. WIREMESH RODS.
  • Calibration certificate provided with traceability to National standard.
  • Provided with DQ, IQ, OQ Documentation.
  • Temperature automatically maintained by Digital controller, which controls/pressure & temperature with temp. indication, factory set at 121 Deg. C (15 PSI), alongwith built-in Digital timer adjustable for maintaining sterilization cycle time with auto cut-off. Complete with basket made of thick S.S. wiremesh rods.
    Size Available
    SIZE OF WORKING CHAMBER
    [DIA x HEIGHT]
    CAPACITY (LITRES) RATING
    [KW]
    12” x 20” 30cm x 50cm 35 2.0
    14” x 22” 35cm x 55cm 52 3.0
    18” x 24” 45cm x 60cm 95 4.0
    18” x 30” 45cm x 75cm 125 4.0
    22” x 30” 55cm x 75cm 175 6.0

    OPTIONAL ACCESSORIES IF REQUIRED EXTRA COST :
    • Digital High Temperature safety controller cum indicator which can be set 2 Deg. C above the set temperature for safety purposes and will cut-off the heater with audio-visual alarm ensuring temperature within chamber doesn’t exceed safety threshold.
    • Printer Interface facility to record data of 1 temperature and 1 pressure location within the chamber, Can print date, time, temp. when connected to EPSON LX 300 Dot Matrix Printer.
    • Printer interface facility to record data of 3 temperature and 1 pressure location within the chamber. Can print date, time, temp. when connected to EPSON LX 300 Dot Matrix Printer.
    • PC Interface with software.
    • 24 column printer (Imported) to be connected to above Printer Interface.
    • …Do… with FO indication with standard PC software.
    Basket made of thick wire mesh rods.

    N. B. :- THE DIGITAL CONTROLLER & PRESSURE GAUGE WILL BE PROVIDED WITH TEST AND CALIBRATION CERTIFICATE FROM OUR ASSOCIATE M/S. NOVA CALIBRATION CENTRE HAVING TRACEABILITY TO NATIONAL STANDARD.
