NOVA Dart Impact Tester is specifically designed to cater the needs for
Plastic Testing Apparatus especially
for Checking Impact resistance of
Plastic film as per ASTM-D 1709-75.
APPLICATION:
NOVA – Dart Impact Tester is usedfor determination of the energy that
causes polyethylene film to fall under sp
ecified conditions of Impact of
a free falling Dart. The test method is as per ASTM-D-1709-75 and IS-
2508-1977.Most useful for manufacturers
and bulk consumers of Plastic
film,Packaging Inds,Dairies,Edible O il Mfgrs, Detergent Factories,R&D,
Q.C.,Educational, Engg.Colleges,Poly., I.T.I’s, Training & Practicals etc.

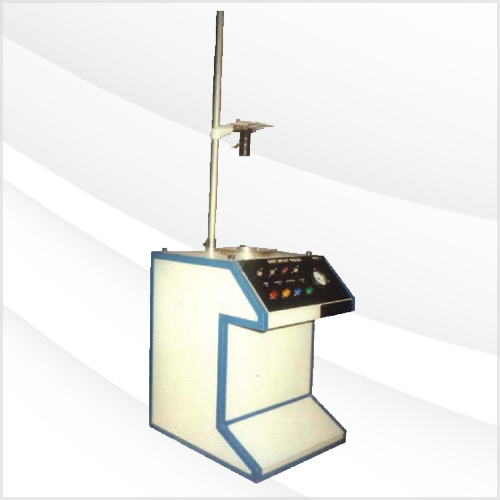

DART IMPACT TESTER
PROCESS:
In the falling dart method a dart is
subjected to a free fall on to a piece of
plastic film under test from a specifi
ed unsupported portion of a stretched
film clamped tightly all around. Add
itional weights of dart are provided
to fascilitate increase of Dart weight
in steps of 15gm.Two types of darts are provided to carryout test A & B. The equipment is provided with a vacuum pump for slip free clamping of films.
CONSTRUCTION:
Dart with 2 sets of weights.
Base Plate.
Vacuum Pump.
Adjustable Electro magnetic dart holder.
Operation – 230 Volts AC Single Phase.
SALIENT FEATURES:
Elegant design and attractively powder coated paint.
Built-in base leveling leveler supports/shock absorbers.
Built-in Vacuum Pump.
Dart & various weights are
provided as per reqts. Ava ilable 15gm,30gm,45gm,60gm & 90gm.
Release Mechanism. – Mechanical OR Electrical OR Electromagnetic.
RECOMMANDED ACCESSORIES :
Suitable Voltage Stabilizer (Optional)
Illumination with Timer (Optional).
SPECIAL NOTE :THE DIGITAL CONTROLLER WILL BE PROVIDED WITH TEST AND CALIBRATION CERTIFICATE FROM OUR ASSOCIATE M/S. NOVA CALIBRATION CENTRE HAVING TRACEABILITY TO NATIONAL STANDARD.
N. B. :-
ALL “NOVA” MELT FLOW INDEX’s DIGITAL TEMPERATURE INDICATOR CUM CONTROLLER - MICRO CONTROL BASED ONLY WILL BE PROVIDED WITH TEST & CALIBRATION CERTIFICATE
OF OUR ASSOCIATE M/S.NOVA CALIBRATIO
N CENTRE WITH TRACEABILITY TO NATIONAL/ INTERNATIONAL STANDARD.
