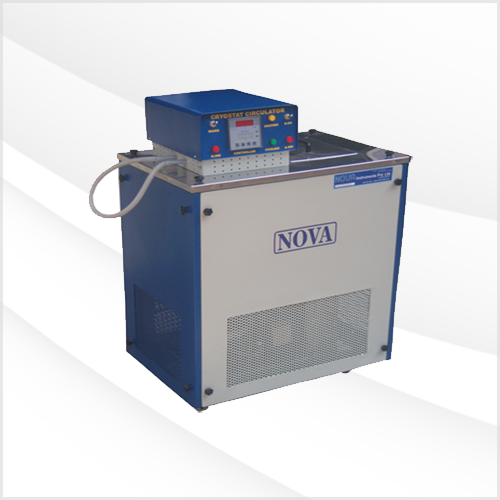

CRYOSTAT REFRIGERATOR BATH

CRYOGENIC BATH WITH CIRCULATING PUMP
(DIGITAL MICROPROCESSOR BASED PID CONTROL SYSTEM)

“NOVA” Cryogenic Bath With Circulating Pump for operation between  various temperature range as per the table provided.

Double walled tank, inner polished  Stainless steel. Outer Mild Steel. Glass-wool/cerwool/polyurethene  foam  insulation. Immersion heater. Fully solid state, proportional ON/OFF or PID control of  temp. fully automatic action, Pt-100  sensor. Combination of digital set  point & LED readout (PV&SV). Pump  cum  stirrer to  circulate liquid  at  closely  controlled  temp. through  external system and stir tank liquid.

It has large work space for conducting direct tests & is additionally provided with built-in refrigeration system with  hermetically  sealed  compressor, fan cooled  condenser and uniquely  designed  evaporator coil that isolates work space from heaters etc. Completely enclose in M.S. frame and  panel. Finished attractively & designed for easy service/maintenance. Provided  with double walled insulated Stainless Steel lid as cover for work space.
CRYOGENIC BATH WITH CIRCULATING PUMP
TECHNICAL SPECIFICATION:
  • Microprocessor Based PID CONTROLLER cryogenic bath with circulating pump.
  • STAINLESS STEEL body chamber.
  • Capacity : Approx. 10 litre (Inner chamber)
  • Hermetically sealed compressor.
  • Stirrer for uniform temperature within the bath.
  • Circulating pump capacity 10 litre/min. (approx.) bottom discharge.(External circulation through separate magnetic drive pump).
  • Servo Controlled Voltage stabilizer with high voltage and low voltage cut-off to protect the compressor is to be provided.

Temperature Range -30°C to + 40°C
Accuracy +/- 0.2°C to 0.5°C
Bath Size (Inner dimension approx.) L x W x D 230 x 200 x 180mm approx.
Heater Wattage 1.5 KW (Min) approx.
Power Supply 220/230 V, 50Hz approx.
Specimen/Calibration test unit rack
Instruction manual will be supplied with the instrument.

SPECIAL NOTE:

THE CONTROLLER ARE PROVIDED WITH TEST & CALIBRATION REPORTS FROM OUR ASSOCIATE M/S.NOVA CALIBRATION CENTRE HAVING  TRACEABILITY TO NATIONAL STANDARD.
