Product >> Laminate Testing Instrument >>C.O.P. Appartus

COP APPARATUS

C. O. P. (CASTOR OIL PENETRATION) APPARATUS [AS PER IS 2046 : 1995]

INTRODUCTION :
“NOVA” MAKE C. O. P. (Castor Oil Penetration) APPARATUS (As Per IS 2046:1995) is specifically designed for Castor Oil Penetration of Crape paper for Decorative Laboratory Testing application.

CONSTRUCTION:
The system is consisting of 2 Parts.
(1) CASTOR OIL CONTAINER ASSEMBLY.
(2) DIGITAL CONTROL PANEL.
TECHNICAL SPECIFICATION OF CASTOR OIL CONTAINER ASSEMBLY
The Castor Oil Container Assembly is made of STAINLESS STEEL  having ……..
  • Spring Holding Sample System.
  • Manual Stirrer Built-in.
  • Pt-100 sensor.
  • Micro switch.
  • Heater with insulation.
  • Container inclined mechanical device &
  • Water  cooling circulating coil built-in
The entire container assembly is kept in Stainless Steel Tray
TECHNICAL SPECIFICATION OF DIGITAL CONTROL PANEL :
The Control Panel is consisting of following.
  1. Mains Switch.
  2. Mains Indicator.
  3. Digital PID Controller.
  4. Heater ON Indicator.
  5. Alarm Indicator i. e. for Water circulation through cooling coil, if required.
  6. Digital Micro time Totalizer having Resolution is 0.001 Sec.
  7. On the back side of the panel, Johnson connector is provided.
  8. Socket for Pt-100 Sensor.
  9. Mains Cable.
  10. SSR & Fuse is built-in the panel.
TECHNICAL DATA :
  1. Digital Timer Range : 999.99 Sec.
  2. Resolution : 0.01 Sec.
  3. Temperature Control : Digital PID
  4. Sensor : Pt-100
  5. Temperature Range : 37° C + 1° C
  6. Temperature Resolution : 0.1° C
  7. Cooling : By Circulating cold water

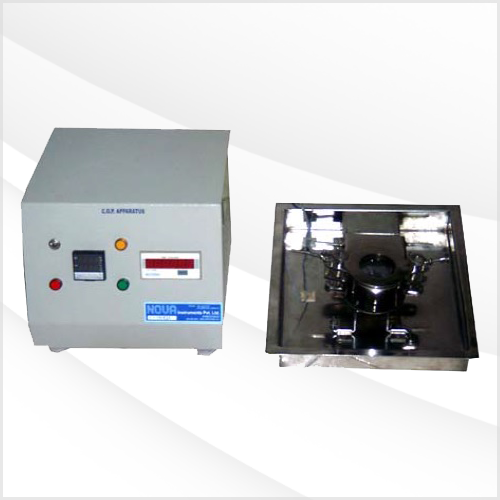

C. O. P. (CASTOR OIL PENETRATION) APPARATUS
