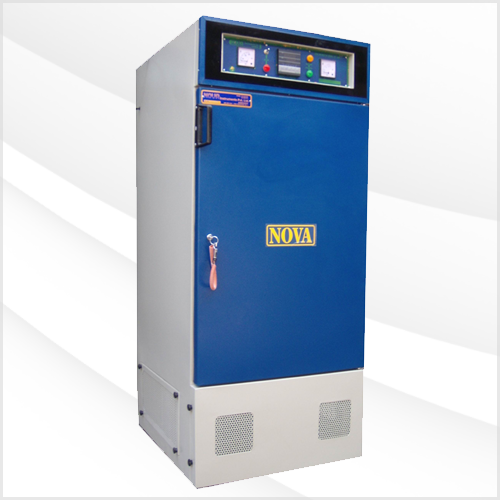

"NOVA" B.O.D. INCUBATOR

B.O.D.INCUBATOR/COOLING INCUBATOR/COLD CHAMBER [LOW TEMPERATURE INCUBATOR]

INTRODUCTION :
“NOVA” B.O.D. Incubator is specifically designed to cater the needs of incubation and routine determination of Biological Oxygen Demand on Water & Sewage, Cultivation of Bacteria, Storage of Dairy products, Shell life test etc.

SALIENT FEATURES:
  • PUF/Glasswool insulation
  • Sturdy Construction.
  • Easy moveability.
  • Digital Display & Control (PID/PLC OR TOUCH SCREEN LCD DISPLAY)
  • Fully automatic Control system.
  • Stainless Steel inner chamber.
  • Glass view Window or Full Glass Door.
  • Continuous Force Air Circulation.
  • Chamber illumination (Optional)..
B. O. D. INCUBATOR (PID MICROPROCESSOR BASED
APPLICATION:
“NOVA”  B.O.D. INCUBATORS  are available in various size,  capacity   and inner chamber material  for various application and uses in Biology, Virology, Oceanography, Water Pollution, Sewage, Agriculture, Dairy Product Food Research. Lab. and other application include cultivation of Bacteria, Shell life Test, Cultivation of insect Varieties for Genetic Studies, Preservation of vaccine and other test  demanding constant & uniform temperature below & above ambient.

CONSTRUCTION:

Double walled construction, exterior of Mild Steel/GI finished in powder coating epoxy paint/enamel paint. Interior made of STAINLESS STEEL – 304.

PUF/Glass wool insulation will be provided between the chambers to minimize heat/cool loss. Glass-window or full glass-door will be provided. The door will be of double walled provided with magnetic gasket, lock and handle. Removable trays at the fix distance are provided. Forced air circulation is provided for uniform temperature. The entire unit rest on castor wheels for easy move ability.

HEATING & COOLING:

Heating by long lasting air heaters provides heating above ambient temperature with electronic digital control and display system. Hermetically sealed compressor coupled with evaporation coil and fan cooled condenser/condensing unit provide cooling below ambient temperature.


CONTROL SYSTEM:
Provided on the front and or top side of the unit for easy assessment, operation & maintenance.

PANEL:

The control panel system is consisting of Digital display & Control unit – PID Control Based, Pilot lamp, Mains ON/OFF Switch, Mains Indi., Heating or Cooling cycle indication etc. Touch screen Digital LCD display is compact & front mounting.


TECHNICAL SPECIFICATION:
Temperature Range

5 Deg. C  to 50/60 Deg. C Without illumination.
15 Deg. C to 50/60 Deg. C with illumination.

Indication Resolution +/- 0.1 Deg. C.
Control Accurac 0.5 Deg. C at 27 Deg. C.
Senser Pt-100 type.
Capacity Available in various capacities.
Power Supply 230 V AC, 50 Hz.

  CAPACITY   INNER DIMENSIONS
IN CMS (H x W x D)
CONTROL SYSTEM
PID CONTROL & MODEL NO. TOUCH SCREEN
LCD DISPLAY & DATALOGGING & MODEL NO.
GMP TOUCH SCREEN DISPLAY
& MODEL NO.
06 Cuft 70 x 50 x 50 cms 10/06 20/06 30/06
08 Cuft 80 x 55 x 50 cms 10/08 20/08 30/08
10 Cuft 90 x 55 x 55 cms 10/10 20/10 30/10
12 Cuft 90 x 65 x 58 cms 10/12 20/12 30/12
16 Cuft 90 x 70 x 70 cms 10/16 20/16 30/16

RECOMMANDED ACCESSORIES :
  • Suitable Voltage Stabilizer (Optional)
  • Illumination with Timer (Optional).

SPECIAL NOTE : THE DIGITAL CONTROLLER WILL BE PROVIDED WITH TEST AND CALIBRATION CERTIFICATE FROM OUR ASSOCIATE M/S. NOVA CALIBRATION CENTRE HAVING TRACEABILITY TO NATIONAL STANDARD.
