“NOVA” Digital Tray Dryer is specifically designed to cater the needs in Industrial Production in Chemical, Pharmaceuticals, Food, Textiles, Dyestuff, Plastic Electrical, Automobiles as well as other Industries.
DESCRIPTION:
Double walled construction inner made of STAINLESS STEEL and outer made of thick M.S. duly powder coated paint. The Tray Dryer is heavily insulated with glass wool insulated material. The door is also insulated and provided with insulated gasket to prevent hot air leakages. Motorized forced air circulation is provided for uniform temperature and air circulation every level.
The Temperature is controlled by Digital Micro Control/Microprocessor Based Temp. Indicator cum Controller.
TECHNICAL SPECIFICATION:
Temp. Range
5 Deg. C above ambient to 100/150/200/300 Deg. C (Any one)
Temp. Control
[a] Digital Micro Control Based Temperature Indicator cum Controller.
[b] Microprocessor Based Digi.PID Controller can also be supplied for better acc.
Control Accuracy
+/- 2 Deg. C. for Digital Model & +/- 1 Deg. C in PID Model.
Heating
By specially designed bank of heaters.
Power Supply
230 V AC 1 phase or 440 V AC 3 phase 4 wire system depend upon the model, size, temperature range and heater load.
Models Available

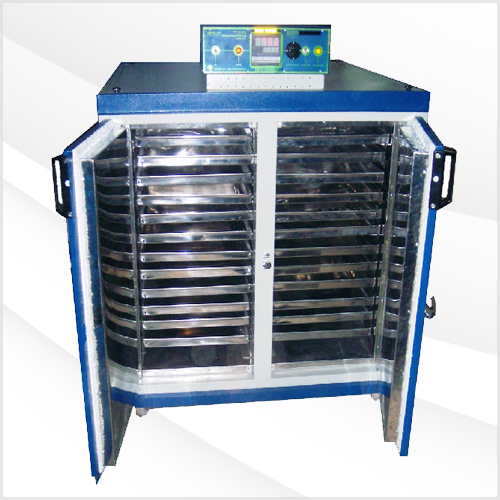

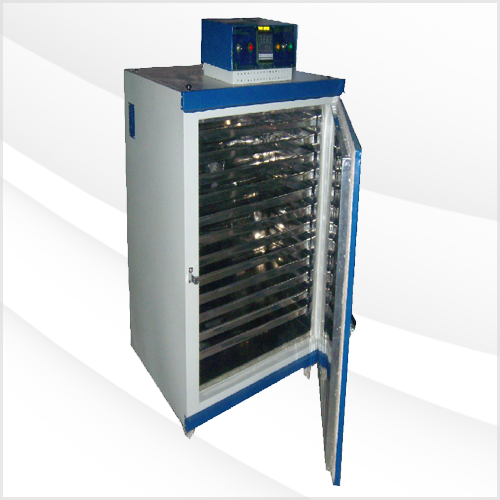

12 Tray – 24 Tray – 48 Tray & 96 Tray.
The unit will be supplied with/without reg. numbers of _____S. S. 304 – 20 SWG trays of Size : 16”x32”x1-1/4”
