ESCR TEST APPARATUS

ENVIRONMENTAL STRESS CRACK RESISTANCE APPARATUS [E. S. C. R. APPARATUS]
AN INSTRUMENT DESIGNED & DEVELOPED FOR TQA FOR PLASTIC TEST REQUIREMENTS

INTRODUCTION :
The equipment is used for determining the susceptibility of polyolefin plastics to environmental stress cracking when subjected to certain conditions. In this method, the artificially stressed specimen (bent) are subjected to surface active agents. The apparatus consists of S.S.inner tank for holding water or any other liquid used for the test. The tank is heat insulated. An automatic controller controls the liquid temperature accurately. The stirrer ensures the circulation of liquid and keeps the temperature uniform at all the areas inside the tank. A stainless steel tray hold the test tubes containing the specimen. All the tools like Nicking Jig, Die, Transfer tool, Bending tools etc. required for preparing the specimen are also provided with the equipment. The equipments has been designed to the National and International standard VIZ BIS, ASTM, ISO etc.

SYSTEM/METHOD:
Environmental Stress Cracking Resistance (Often called as ESCR) is a stimulated type of test measurement for a product’s performance in a stress initiating/propagating type of environment causing failure when prestressed in some manner.

It consists of preparing a standard test specimen, initiating a stress point by a nick, stressing it by bending along the nick, and inserting in a stimulant environment at a certain temperature generally 50 Deg.C and examining it is resistance in terms of time (hours) to cracking it from the nick.

This apparatus with all the accessories with point-dot nicking arrangement to the highest accuracy and operating ease and made from better quality alloy steels. The sample holders are corrosion resistant stainless steel made. The water bath is also equipped with a accurate temperature controlled throughout the test duration. The inner is a good quality Stainless Steel sheet and a convenient test tube holder fro uninterrupted sample observation.

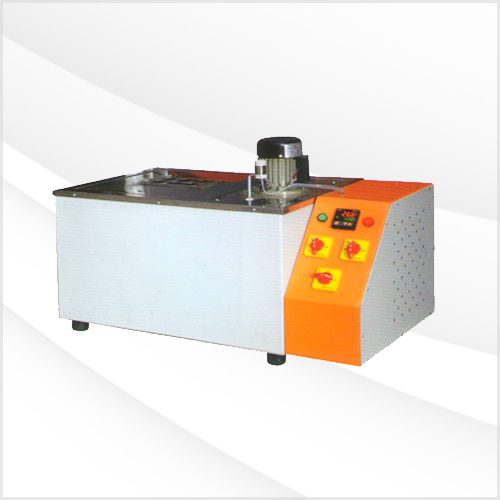

ESCR TEST APPARATUS
TECHNICAL SPECIFICATION:
POWER REQUIREMENT 230 V AC, 50 Hz SINGLE PHASE.
HEATING LOAD 1 KW/1.5 KW
TEMPERATURE RANGE AMBIENT TO 99 DEG.C.
RESOLUTION 0.1 DEG.C. WITH DIGITAL TEMP.INDICATOR CUM CONTROLLER – MICRO CONTROL BASED AND STIRRING UNIT.
BATH CAPACITY ABOUT 25 LITRES.

STANDARD ACCESSORIES SUPPLIED WITH THE INSTRUMENT:
  • Punching Die.
  • Nicking Jig with blade.
  • Specimen bending clamps.
  • Transfer tool.
  • Specimen holder.
  • Borosil Test tubes & Water Bath with Temperature controller.

ALSO PROVIDED WITH MICROPROCESSOR BASED TEMPERATURE CONTROL SYSTEM FOR BETTER CONTROL AND ACCURACY

ALL DIGITAL INSTRUMENTS ARE PROVIDED WITH TEST AND CALIBRATION CERTIFICATE FROM OUR ASSOCIATE M/S.NOVA CALIBRATION CENTRE WITH TRACEABILITY TO NATIONAL STANDARD.
