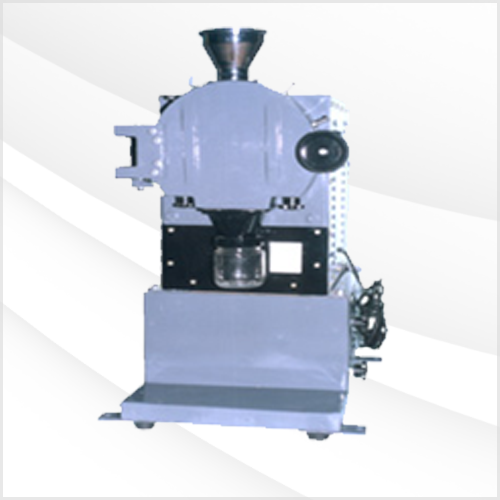

LABORATORY SOIL GRINDER

LABORATORY SOIL GRINDER

INTRODUCTION:
For the rapid  milling  of  laboratory  samples  of desiccated plant tissue/soil samples or similar materials. Fitted with rugged, compact Motor. In use samples are introduced  through the hopper at the top & agitated by the high speed of the rotor until cut to sufficient fineness to fall through the screen top of the removable delivery tube which forms the bottom of the mill chamber. A open able plate cover over the face of the chamber size permits of easy access to the chamber for cleaning. 3  speed  can be obtained  by changing the position of V-belt.

Larger samples can be  collected  in a 4 oz screw top jar which can be attached to the lower  end of the delivery tube   by   means   of  a  special   threaded  adapter. Supplied complete  with  hopper  with   cover,  wooden  plunger,  three delivery tubes with tops of 20,40 & 60mesh screen respectively   & receiver. FOR OPERATION 230 VOLTS A.C.SINGLE PHASE.

AVAILABLE IN:
  • [A] Blade, Delivery tube & rotor made of MILD STEEL.
    [B] Blade, Delivery tube & rotor made of STAINLESS STEEL.

    SIZE : 200 x 75mm
