PLANT GROWTH CHAMBER |
 |
|
| |
| INTRODUCTION: |
| “NOVA” Growth Chamber can generate & maintain above amb. temp. below
amb. temperature, Humidity and Day & Night effect. It is specifically designed
for application of various testing under low temp. and with control humidity
Illumination [Day & Night Effect] especially for Plant Growth. |
| |
| APPLICATION: |
| These Growth Chambers are used for Plant Growth and Animal Studies and to Analyses their flowering cycle. |
| |
| SALIENT FEATURES: |
- Fully automatic, temp. control-Micro control Based.
- Easy to operate.
- Top Control Penal.
- Obstruction free working space.
- Dig. Temp. Indicator & Control (Micro Control).
- Sensitive Temperature sensor Pt-100 type.
- Floor model.
- Castor wheel for easy move ability.
- Elegant outlook, enamel painted/powder coated.
- Glass door/window to see through.
- Forced Air Circulation.
- Humidity Control by dry & wet principal.
- Uniform temperature.
- Solid State electronic circuit.
- Digital display for dry & Wet.
- Stainless Steel steam boiler
- Auto Water level control.
- Panel Meters – Volt & Ampere.
- Day/Night effect by bank of fluorescent light control and programmed through Microprocessor Based Electronic Cyclic Programmable timer.
|
|
 |
|
| |
| CONSTRUCTION: |
| The unit is of double walled construction. The exterior chamber is made of mild steel & finished in non corrosive paint or powder coated and interior chamber is made of heavy gauge polished stainless steel. Between two chamber glass-wool insulation isprovided. Glass window/Door is provided to see the operation without disturbing the control condition inside the chamber. An outside metal door with lock is provided. The unit rest on castor wheel. 5/6 removable tray at fix distance are provided. Forced air circulation for uniform temperature. 2 Nos. Digital Display indicating Dry & Wet temp. Humidity by steam injection control by dry & wet bulb principal and set by chart provided. |
| |
| HEATING: |
| [A] Chamber is heated by long lasting air heater. [B] Boiler heater is of immersion type. |
| |
| COOLING: |
| Using hermetically sealed compressor coupled with evaporation coil & fan cool Condenser. |
| |
| HUMIDITY: |
| Humidity generated by steam injection near the duck from a boiler connected to water tank fitted with water level controller. Humidity set & derived by dry & wet bulb principles by provided depression chart. |
| |
| ILLUMINATION: |
| Day/Night effect provided by bank of fluorescent light control and programmable.Through Microprocessor Based Digital Programmable timer with circuit. |
| |
| INDICATION & CONTROL: |
| Digital display indication for temperature Dry & Wet, Fully automatic solid state electronic controllers with Pt-100 sensors for both dry & wet bulb controllers are panel type easy for maintenance & service. |
| |
| CONTROL PANEL: |
| Control panel is provided on the top of the unit consisting of Mains switch, Mains indicator, Ampere meter, Voltmeter, Dry bulb Digital Indicator cum Controller, Dry bulb indication pilot lamp (For cooling cycle-heating cycles) Wet bulb Digital Indicator cum Controller, Wet bulb Indication pilot lamp. Low water level controller fitted & connected through circuit to boiler heater low level pilot lamp (will not glow if water level is below requirements), Programmable Digital Timer Microprocessor Based. |
| |
| TECHNICAL SPECIFICATION: |
| Temperature Range |
10 Deg. C to 60 Deg. C Without illuminations [Cooling model] ...OR
* 15 Deg. C to 60 Deg. C with illumination in cooling model. * 5 Deg. C above amb. to 60 Deg. C Without cooling model. |
| Indication Resolution |
+/- 0.1 Deg.C. & 1% RH. |
| Control Accuracy |
90 to 95% RH Controllable. |
| Humidity Accuracy |
+/- 1 Deg.C & +/- 3% RH. |
| Control Accuracy |
+/- 1 Deg. C & +/- 3% RH. |
| Sensor |
Pt-100 type. |
| Capacity |
Available in various capacities. |
| Power Supply |
230 V AC, 50 Hz. |
|
| |
| SAFETY FEATURES : |
- Ambient Open sensor Error/Alarm.
- Wet Temp.Open Sensor Error/Alarm.
- LED & Display Error Indication.
- Dry Temp.Open sensor Error/Alarm.
- Audible Alarm
- Low water level controller and LED indication.
|
| |
CAPACITY
(Cu.Ft) |
INTERNAL DIMN. IN CMS (HxWxD) |
TEMP. RANGE ILLU. OFF |
TEMP. RANGE ILLU.ON |
CHAMBER |
| 4 Cuft |
61 x 45 x 41 |
10 to 60 Deg.C |
15 to 60 Deg.C |
Single |
| 6 Cuft |
70 x 50 x 50 |
10 to 60 Deg.C |
15 to 60 Deg.C |
Single |
| 8 Cuft |
80 x 55 x 50 |
10 to 60 Deg.C |
15 to 60 Deg.C |
Single |
| 10 Cuft |
90 x 55 x 55 |
10 to 60 Deg.C |
15 to 60 Deg.C |
Single |
| 12 Cuft |
90 x 65 x 58 |
10 to 60 Deg.C |
15 to 60 Deg.C |
Single |
| 14 Cuft |
90 x 65 x 66 |
10 to 60 Deg.C |
15 to 60 Deg.C |
Single |
| 16 Cuft |
90 x 70x 70 |
10 to 60 Deg.C |
15 to 60 Deg.C |
Single |
|
| |
- ALL ABOVE CAPACITY MODELS ARE AVAILABLE IN DUAL CHAMBERS.
- DUAL CHAMBERS MODELS ARE AVAILABLE WITH ONE HEATING AND ONE COOLING SYSTEM OR BOTH CHAMBERS HAVING HEATING & COOLING SYSTEM.
- OTHER CAPACITY MODELS AVAILABLE ON DEMAND.
- WALK-IN GROWTH CHAMBERS ARE AS PER REQD.SIZE & CAPACITY AVAILABLE.
|
| |
| ACCESSORIES : * Servo Controlled Voltage Stabilizer. |
| |
| SPECIAL NOTE : |
| ALL THE CONTROLLERS ARE PROVIDED WITH TEST & CALIBRATION REPORTS FROM OUR ASSOCIATE M/S.NOVA CALIBRATION CENTRE WITH TRACEABILITY TO NATIONAL/INTERNATIONAL STANDARD. |

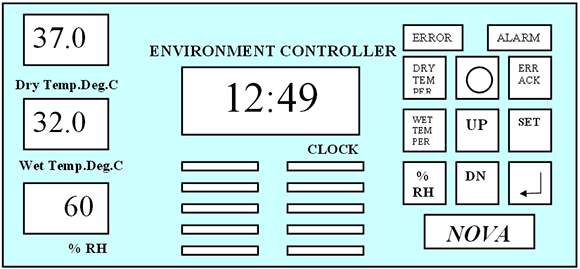

| SCHEMATIC DIAGRAM OF MI CROPROCESSOR BASED DIGITAL CONTROLLER |
| |
 |
