CONSTANT TEMPRATURE BATH

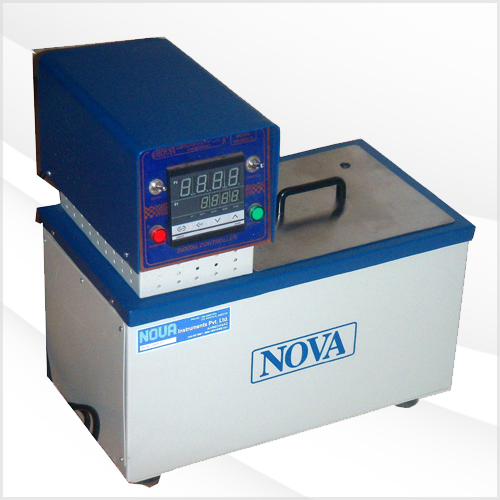

DIGITAL CONSTANT TEMPERATURE WATER BATH

INTRODUCTION :

NOVA DIGITAL CONSTANT TEMPERATURE WATER BATH  is specifically designed to cater the needs for Laboratory, R & D, Quality Control and Analytical Work.


SALIENT FEATURES:
  • Fully Automatic.
  • Easy to operate.
  • High & Reproducible Accuracy.
  • Clear Working space.
  • Uniform heating & stirring.
  • Digital Temp. Indication & Control (Microprocessor Based PID Control)
  • High sensitive temperature sensor.
  • External circulation pumping system (Optional).
  • Microprocessor Based Programmable Controller [Optional].
PID MICROPROCESSOR BASED
APPLICATION:
NOVA DIGITAL CONSTANT TEMPERATURE WATER BATH are available for various use in R & D Centers, Quality Control Departments, Universities, Post-Graduate Institutes, Medical Colleges, Research Organizations, Industries, Refineries and Petroleum Testing Laboratories especially for determination of viscosity of liquids, external circulations (Optional) etc. etc.

CONSTRUCTION:

Double walled construction. The working chamber is made out of selected grade thick STAINLESS STEEL Sheet. This is mounted in a Mild Steel cabinet duly powder coated. The heaters are of tubular type immersion heaters resulting in quick transfer of heat to the bath media. The circulation stirrer unit is accommodated near the heaters in a separate compartment separated by a weir arrangement hence the bath is available obstruction free for use.


HEATING:
Heaters are incorporated and control by Digital Temperature Indicator cum Controller – PID Control.

CONTROL SYSTEM:

All the controls are provided on top for easy assessment and operation consisting of Mains switch, Mains Indicator, Digital Temperature Indicator cum Controller and Heater ON/OFF Indicator.


BHATH MEDIA:
Up to 60/90 Deg. C water can be conveniently made use of but for temperature above 95 Deg. C. water with thin layer of paraffin or technical white oil can be used.

TECHNICAL SPECIFICATION:
Ambient temperature

Ambient +5 to 99°C.

Dimension (H x D x W) 250-270mm x 500-570mm x 300-350mm approx.
Tank capacity 18-20 liters.
Temp. range Ambient +5 to 99°C.
Temp. setting range 10 to 99 in 0.1 steps.
Stability @37°C. ±0.2-0.5
Temp. setting Digital
Temp. display 3 digit bright, wide-angle view LED.
Working volume l/w/d mm 450-500/200-300/100-120
Power consumption 230V/1.5
Drain tap included Yes
Supply voltage 230 V AC single phase
Sample protection Adjustable cuts-outs
Material Inner tank S.S. 304 & outer made of GI duly powder coated.

N. B. :- ALL THE BATHS ARE PROVIDED WITH TEST & CALIBRATION REPORTS FROM OUR ASSOCIATE M/S.NOVA CALIBRATION CENTRE WITH  TRACEABILITY TO NATIONAL STANDARD.
