Product >> Bath >> Calibration Bath

CALIBRATION BATH

HIGH PRECISION HIGH STABILITY PROGRAMMABLE DIGITAL CALIBRATION BATH

SALIENT FEATURES:
  • Fully Automatic.
  • Easy to Operate.
  • Isolated working chamber.
  • High & Reproducible Accuracy.
  • Obstruction free working space.
  • Uniform heating & stirring.
  • Digital Temperature Indication.
  • Digital Temperature Control.
  • Solid State Circuits.
  • Highly Sensitive Temperature Sensor Pt-100 type.
  • Stirring System built-in.
  • Table/Platform model required less space.
Powder coated elegant outer body.
  • Provided with our associate calibration certificate Traceability to National Standard.
  • Auto-tune PID Digital Control (Optional).
  • Microprocessor Programmable Digital Control.

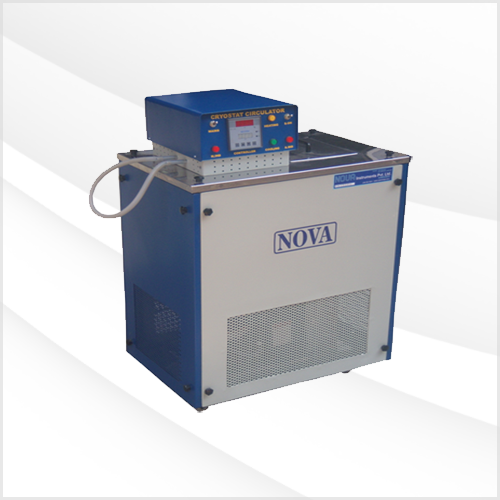

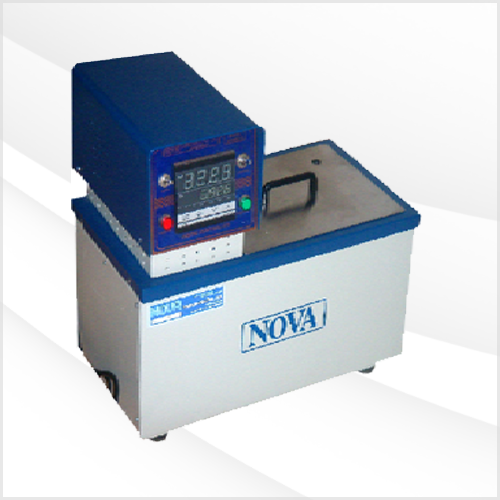

WITHOUT COOLING MODEL WITH COOLING MODEL
INTRODUCTION:
NOVA DIGITAL HIGH PRECISION HIGH STABILITY PROGRAMMABLE CALIBRATION BATH is specifically designed to cater the needs for calibration of Thermometers, Temperature Indicators, Controllers, Temperature Gauges, Sensors, Transmitters, Recorders etc.etc. as well as for Laboratory, R & D, Quality Control and Analytical application.

APPLICATION:
NOVA DIGITAL HIGH PRECISION HIGH STABILITY PROGRAMMABLE CALIBRATION BATH are available for various application in R & D Centers, Quality Control Departments, Maintenance Departments, Research Organization, Industries, Refineries and Petroleum Testing Laboratories and Power plant especially for calibration of various type of Temperature Instruments.

CONSTRUCTION:

Double walled construction. The working chamber is made out of selected grade thick STAINLESS STEEL Sheet. This is mounted in a Mild Steel outer cabinet. Both the chambers are isolated through heat resistance material and heavily insulated through high quality ceramic wool (cerwool). The control panel is also isolated From working chamber as well as outer chamber. The heaters are of tubular type immersion heater resulting in quick transfer of heat to the bath media. Circulation stirrer unit is accommodated near the heater in a separate compartment separated by weir arrangements hence bath is available obstruction free for use.


HEATERS - Bank of heaters are incorporated.
Temperature control by Digital Temperature Controller or Digital PID Temperature Controller or  Microprocessor Programmable Controller selectable optionally.

CONTROL SYSTEM:
All the controls are provided on top separate compartment for easy assessment and operation. Consisting of Mains Switch, Mains Indicator, Digital Temperature Indicator cum Controller, Heater ON/OFF Indicator.

SPECIFICATION:
  • Made of Stainless Steel conforming to ISO standards.
  • Chamber Dimensions Outside – 700 x 400 x 230 mm Approx. or as required.
    Inside – 605 x 310 x 170 mm Approx. or as required.
  • Digital display and automatic temperature control.
  • Regulation by PID to precision ± 0.5°C using a programmable cutback ramp regulator.
  • Possibility of programming the alarm temperature in higher or lower side of set temperature.
  • Water level safeguard with an electrical contact, ensuring shutdown of the pump.
  • Water pump to circulate water to ensure uniform temperature in the chamber.
  • Has a temperature setting from 5°C above ambient to 50°C. – DIGITAL DISPLAY & CONTROL.
  • Stand for minimum 16 Baby Flask and 48 test tubes.
  • Power supply – 220-230 V, 50 Hz, 5A.
  • Power – As required.
  • Protection – Thermal circuit breaker.

OPERATING VOLTAGE : 230 Volts Single Phase 50 Hz AC.
Apart from above models, higher capacity and higher temperature range models can be supplied on request. Application Based “TAILOR” made unit will be designed and manufactured.

SPECIAL NOTE  FOR COOLING MODELS:
  • COOLING MODELS ALSO AVAILABLE ON REQUEST.
  • COOLING MODELS, OUTSIDE DIMENSION WILL CHANGE.
  • TEMPERATURE RANGE : 0/2 DEG. C. TO 50 DEG. C.

DIGITAL CONTROLLER PROVIDED WITH CALIBRATION CERTIFICATE TRACEABLE TO NATIONAL STANDARD.
